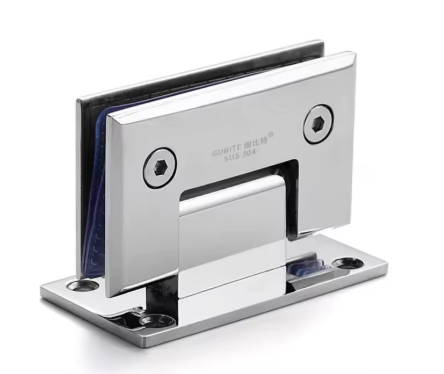

Glass to Glass 90 Degree Hinge – Bevelled Corner

The Glass-to-Glass 90 Degree Hinge - Bevelled Corner is designed to connect two glass panels at a 90-degree angle, making it ideal for frameless glass door and enclosure applications. The bevelled corner design provides a clean, refined appearance while maintaining a secure connection between glass panels.

Suitable for 8–12mm glass thickness, the hinge has a 5mm thickness and a load-bearing capacity of 35–45kg per 2 pieces, providing reliable support for suitable glass door installations.

Ideal for glass doors, shower enclosures, display systems and other frameless glass applications where a neat 90-degree connection is required.

Product Specifications

• Product Type: Glass-to-Glass 90 Degree Hinge
• Design: Bevelled Corner
• Glass Connection: Glass-to-Glass
• Opening Angle: 90°
• Hinge Thickness: 5mm
• Suitable Glass Thickness: 8–12mm
• Load Bearing: 35–45kg per 2 pieces
