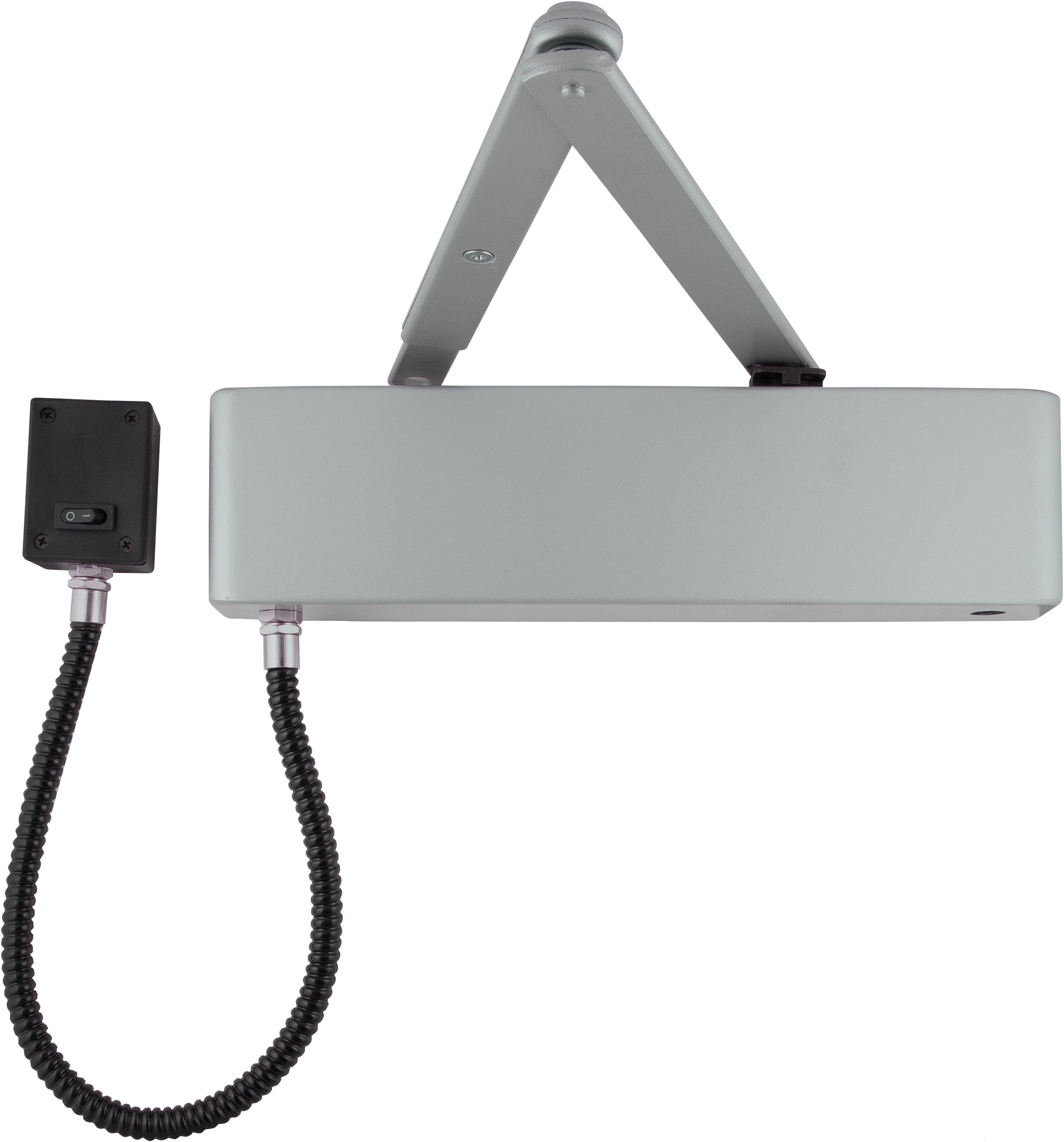

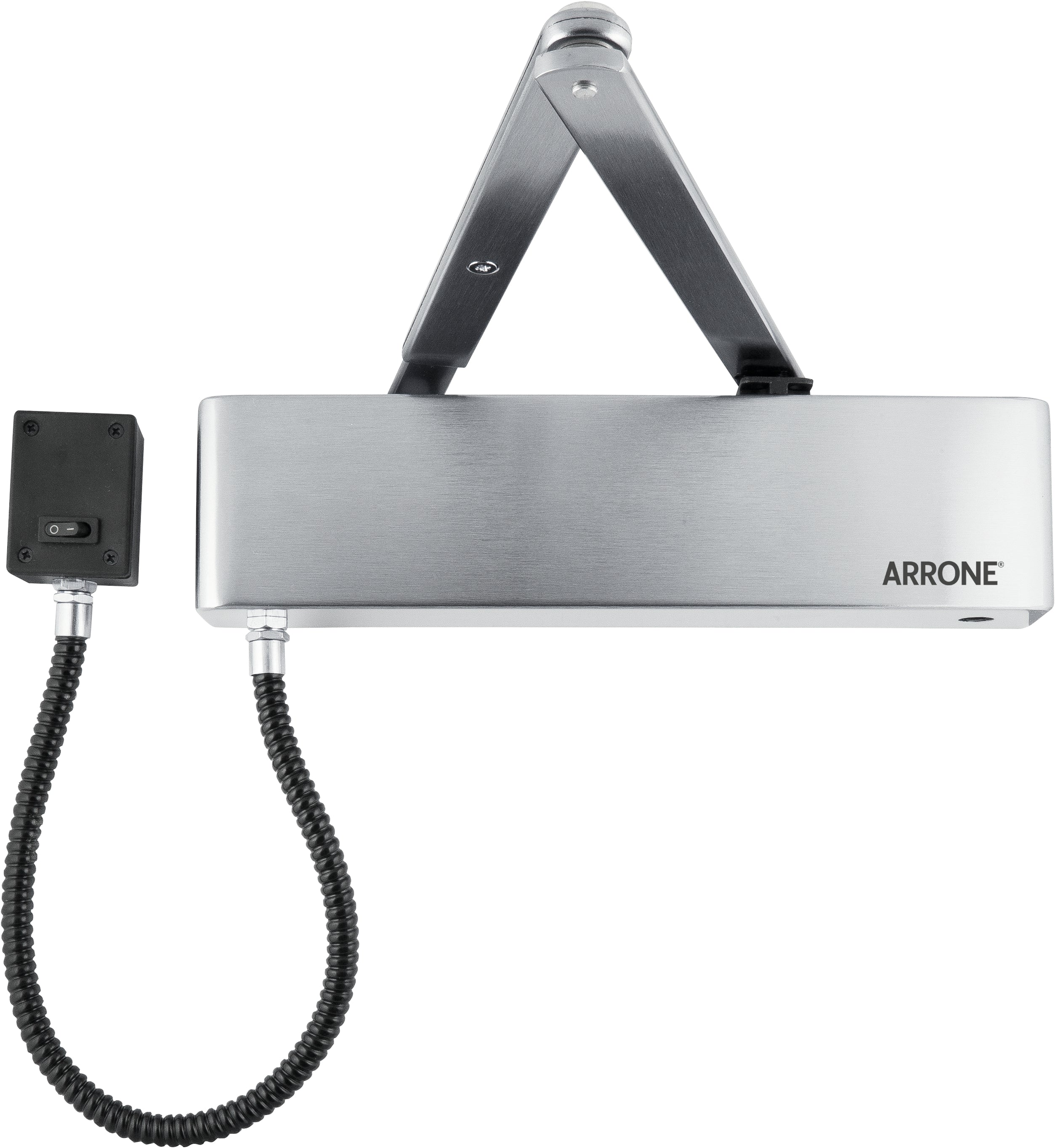

Arrone Hoppe Electromagnetic Door Closer Hold Open/Swing Free

ARRONE overhead electromagnetic door closing device:

• Fixed power size 4
• Function: Closing, latching, electro hold open, electro swing free
• Cover: Slimline cover
• Maximum door width: 1,100 mm (Fig 1), 950 mm (Fig 6)
• Maximum door weight: 80 kg (Fig 1), 60 kg (Fig 6)
• Arm application: Fig 1 and Fig 6 fixing positions
• Successfully type tested for conformity to all the requirements of BS EN 1154:1997
  - Door mount pull side: 3 | 8 | 4 | 1* | 1 | 3
  - Door mount push side: 3 | 8 | 3 | 1* | 1 | 3
• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors.
• CE Marked: AE0017, UKCA Marked: AD7697
• CE DOP: HUK0006-1 ( Fig 1), HUK0006-2 ( Fig 6), UKCA DOP: HUK0006-1-UK (Fig 1), HUK0006-2-UK (Fig 6)
