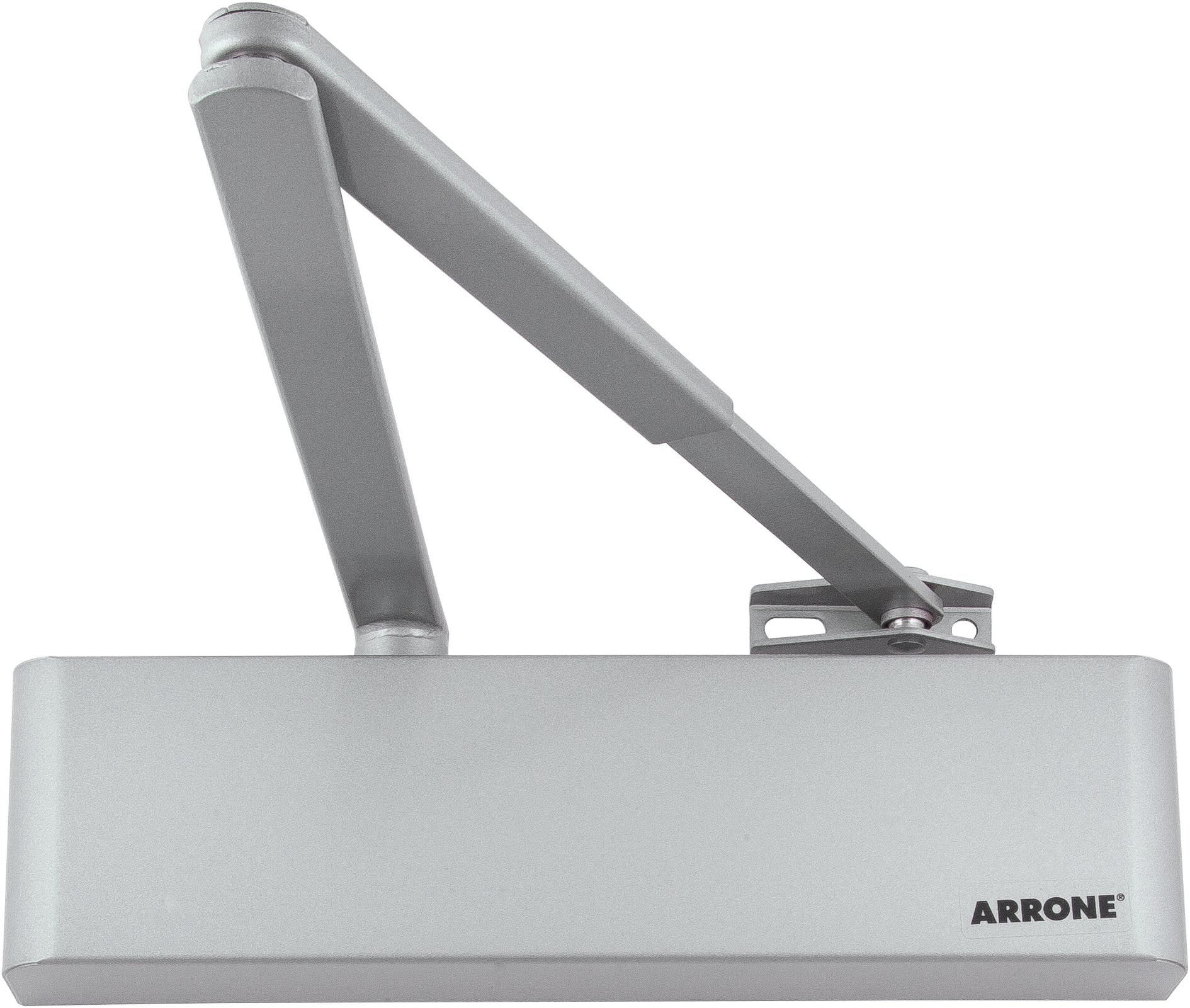

Arrone Door Closer & Matching Arm Slimline 2-5

ARRONE overhead door closing device:

• Power size: 3 to 5 adjustable by spring tension (Size 2 by template)
• Function: Closing, latching, backcheck
• Cover: Slimline cover
• Maximum door width: 1,250 mm (Fig 1), 1,100 mm (Fig 6 and Fig 61)
• Maximum door weight: 100 kg (Fig 1), 80 kg (Fig 6 and Fig 61)
• Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
• Successfully type tested for conformity to all the requirements of BS EN 1154:1997
  - Door mount pull (Fig 1): 4 | 8 | 5/2 | 1* | 1 | 4
  - Door mount push (Fig 6): 3 | 8 | 4/3 | 1* | 1 | 4
  - Transom mount push (Fig 61): 4 | 8 | 4/2 | 1* | 1 | 4
• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors and 240 minutes on steel fire doors.
• CE Marked: AD0239, UKCA Marked: AD7685
• Certifire approved: CF295, CE DOP: HUK0005, UKCA DOP: HUK0005-UK
